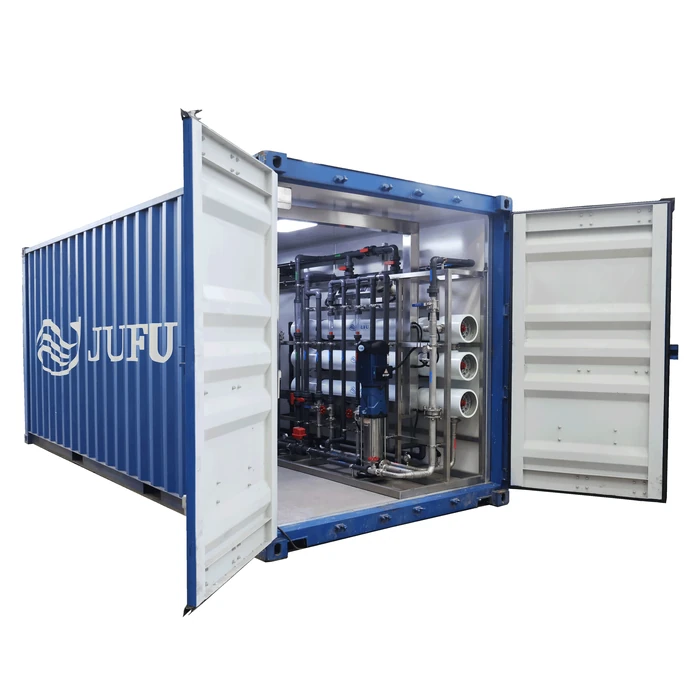

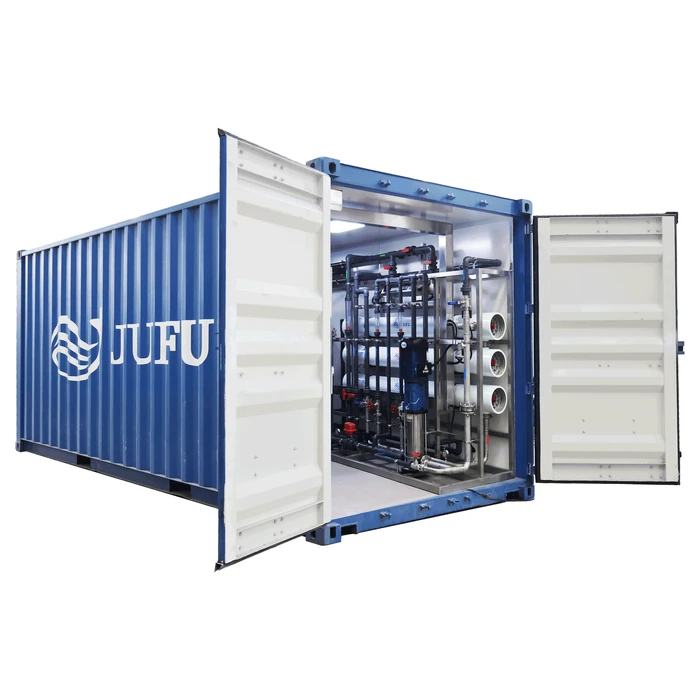

5000LPH Customized UF+RO Water Treatment System in 20GP Container
A customized 5000LPH UF+RO water treatment system integrated into a 20GP container, providing a compact, turnkey solution for efficient and reliable industrial water purification.
Detailed Data
Model: 5TPH-UF+RO
ISO9001 & CE certified
Capacity5000liter/hour
Desalination rate: 99%
RO Recovery rate: ≥62.5%
Membrane size: 4040
Control type: Auto
Pre-shipment testing: Provide
Warranty: 12 months
Phone
+86 18001362005
Product Description

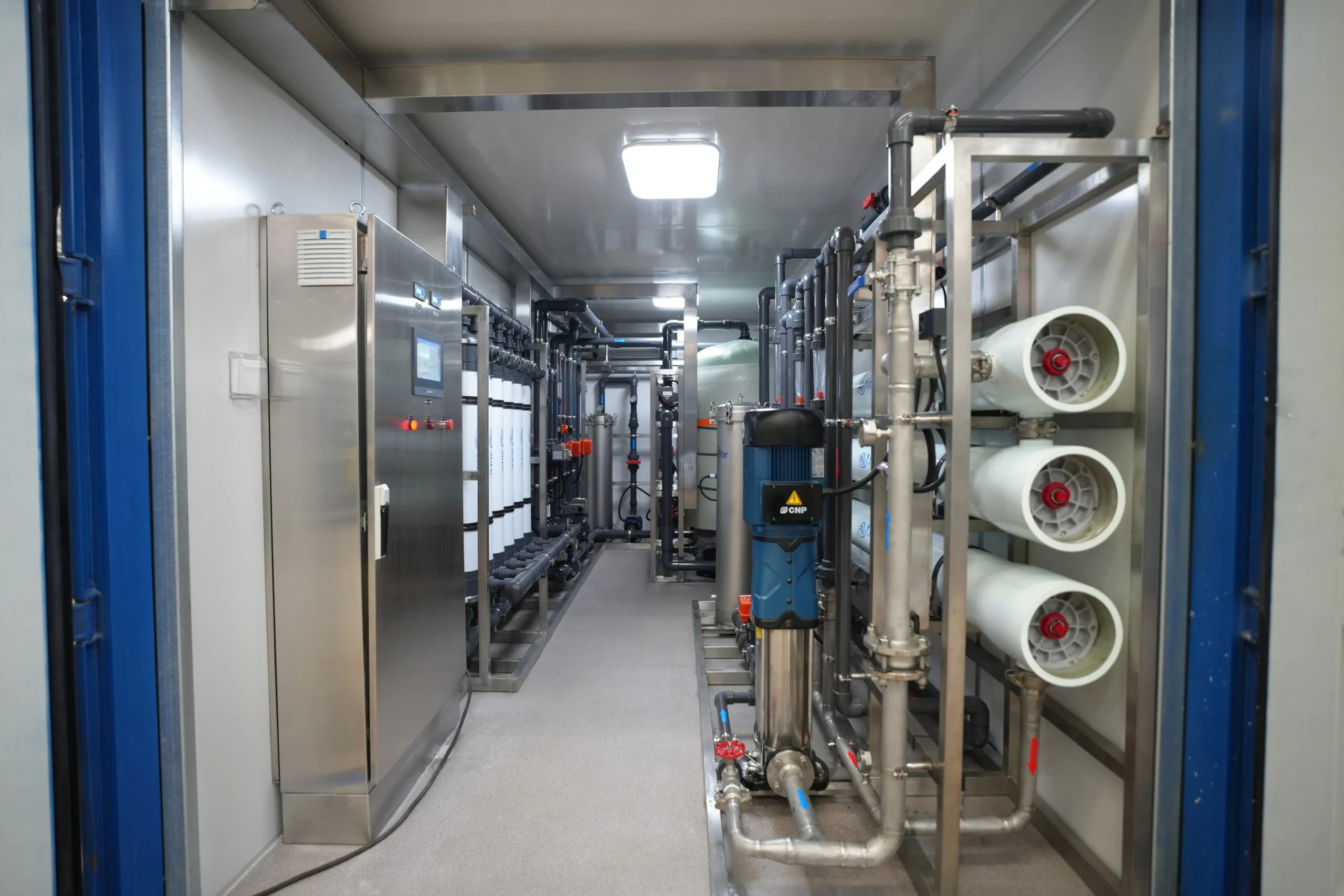

Integrated UF+RO Treatment
Combines ultrafiltration and reverse osmosis technologies in one complete system to provide multi-stage purification and enhanced water quality.
Customized 5000LPH Capacity
Engineered for a 5000LPH water treatment capacity, with system configuration customizable according to feed water quality, application requirements, and project conditions.
20GP Containerized Design
Integrated into a standard 20GP container, the system provides a compact and space-efficient solution while simplifying transportation, installation, and deployment.
Product Description
Integrated UF+RO Treatment
Combines ultrafiltration and reverse osmosis technologies in one complete system to provide multi-stage purification and enhanced water quality.
Customized 5000LPH Capacity
Engineered for a 5000LPH water treatment capacity, with system configuration customizable according to feed water quality, application requirements, and project conditions.
20GP Containerized Design
Integrated into a standard 20GP container, the system provides a compact and space-efficient solution while simplifying transportation, installation, and deployment.
Product Advantages
Why choose our Container water systems?
How JUFU delivers more value to your business？
Customized System Configuration
Key components, treatment stages, membrane specifications, piping, pumps, electrical systems, and layout can be customized to meet specific project requirements.
Plug-and-Play Deployment
Factory-integrated equipment reduces on-site installation work, allowing the containerized UF+RO system to be deployed and commissioned more efficiently.
PLC Intelligent Control System
An integrated PLC control system enables automated operation and monitoring of key treatment parameters, improving system stability, safety, and operational efficiency.
Easy Transportation & Relocation
The 20GP containerized structure facilitates transportation and relocation, making the system suitable for remote sites, temporary projects, and rapidly deployable applications.
Product Advantages
Why choose our Container water systems?
How JUFU delivers more value to your business？
The UF pretreatment stage effectively removes suspended solids, colloids, microorganisms, and other contaminants, helping protect downstream RO membranes.
The RO stage further removes dissolved salts, impurities, and other contaminants to produce high-quality purified water for industrial applications.
Water treatment equipment, pipelines, pumps, electrical controls, and auxiliary components are efficiently integrated within the 20GP container to maximize available space.
Designed as a complete UF+RO water treatment solution for industrial water purification, process water production, water reuse, and other demanding applications.
Contact UsAutomatic controls simplify operation, system monitoring, and protection of critical components.
Contact UsProfessional pretreatment protects RO membranes and improves overall system stability and performance.
Contact UsSuitable for industrial process water, manufacturing, food and beverage production, and water reuse applications.
Contact UsDesigned as a complete UF+RO water treatment solution for industrial water purification, process water production, water reuse, and other demanding applications.
Contact UsAutomatic controls simplify operation, system monitoring, and protection of critical components.
Contact UsProfessional pretreatment protects RO membranes and improves overall system stability and performance.
Contact UsSuitable for industrial process water, manufacturing, food and beverage production, and water reuse applications.
Contact UsSee Our System in Action
Work Flow Chart
Work Flow Chart
Specifications
Specifications
| Model | 5TPH-UF+RO | ||
| UF Membrane Element Model | JFUF-160-PVC | RO Membrane Element Model | BW30PRO-400 |
| UF Recovery Rate | ≥85% | RO Recovery Rate | ≥62.5% |
| Operating Pressure | 0.1-1.6MPa | Power Supply | Single-phase: 110/120/220V 50/60Hz Tri-phase: 110/220/380/415V 50/60Hz |
| Desalination Rate | ≥99% | ||
| Filtration Accuracy | 0.0001 micron | Control Type | PLC control |
| Feed Water Quality | SDI＜5 Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L | ||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | ||
Consumbles & Maintenance Guide
Filter Media
Quartz sand, activated carbon and resin are essential filter media for RO pretreatment systems. They effectively remove suspended solids, chlorine and hardness ions. Recommended replacement period: every 18-24 months.
RO Membrane
High-performance RO membranes provide efficient desalination and purification by removing dissolved salts and contaminants. Proper maintenance ensures stable water quality and extends membrane service life. Recommended replacement: every 1-2 years.
Chemical Dosing(Optional)
Professional dosing chemicals protect RO membranes by preventing scaling, fouling, and biological contamination, improving system efficiency and extending membrane service life.
Consumbles & Maintenance Guide
Application Fields
JUFU water treatment systems are widely applied across industrial and commercial sectors, delivering reliable, high-quality water for manufacturing, production, and utility applications. Each system can be customized to meet specific water quality and capacity requirements.
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Application Fields
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Our Certificates
Our Certificates
Craftsmanship & Technology
Each JUFU system is engineered with premium components, advanced manufacturing processes, and strict quality control. From design to final testing, we ensure reliable performance, energy efficiency, and long-term operational stability for industrial water treatment applications.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
Craftsmanship & Technology
Our craftsmanship and technology ensure superior performance, energy savings, and minimal maintenance for all water treatment processes.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
